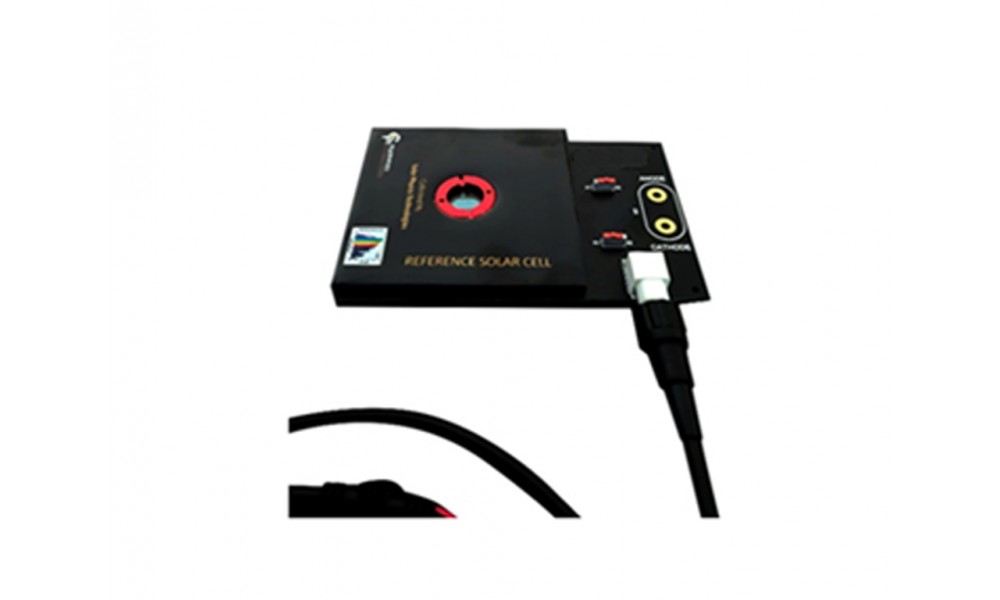

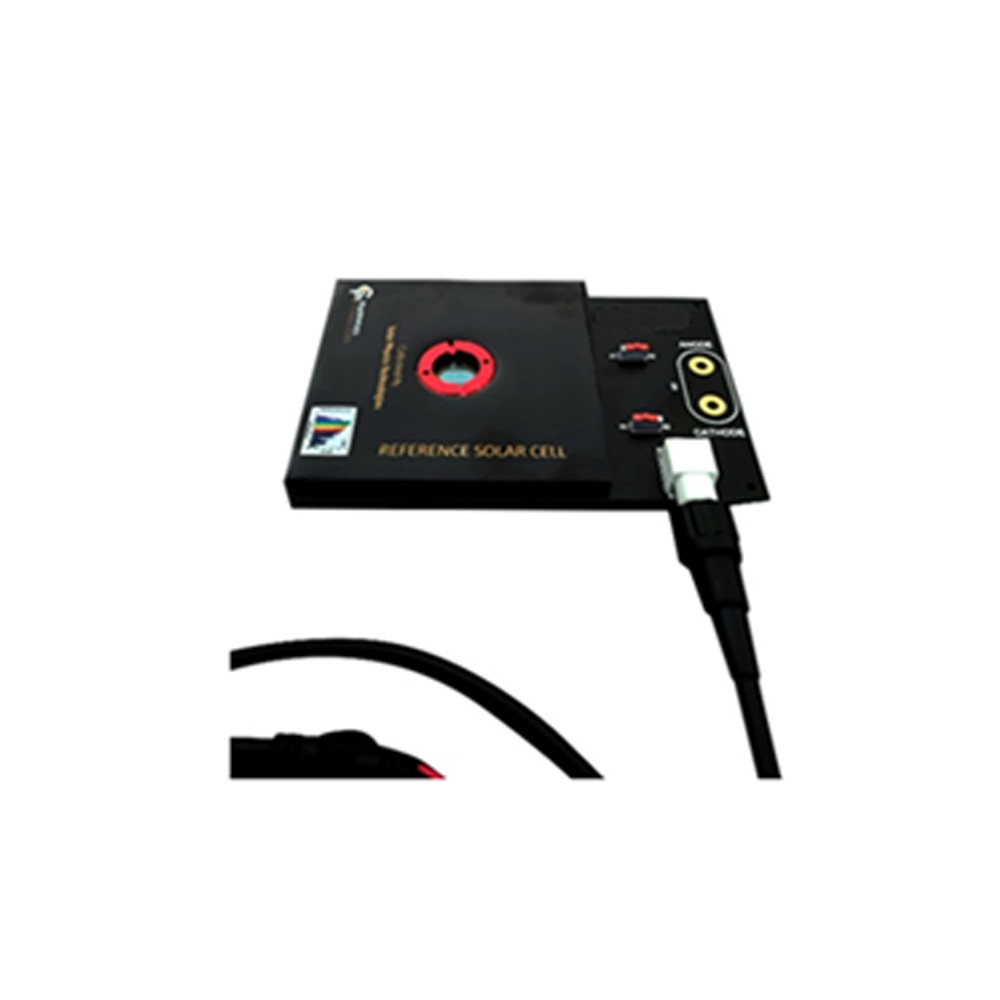

REFERENCE SOLAR CELL SC-9000

This photovoltaic reference cell is designed for calibrating the irradiance of solar simulator used in testing solar cell or when assessing the performance of photovoltaic devices to determine the |-V characterization. The calibrated reference cell consists of a 10mm x 10mm monocrystalline silicon photovoltaic cell encased in a 100mm x 100mm enclosure with a AM1.5  filter. All our measurements are done according to the following IEC standards: IEC 904-1, IEC 904-2, IEC 904-7, IEC 904-8, IEC 904-9, IEC 60891, ASTM 1021, ASTM E973M. The calibrated solar reference cell includes a certificate of calibration, compatible set of connecting cables, and is certified in the following parameters:

Calibration condition: 1000 Wm/2 (1 sun), AM1.5G, 25 °C

Enclosure dimensions: 100mm X 100mm X 10mm

Operating temperature 10 °C-40 °C
