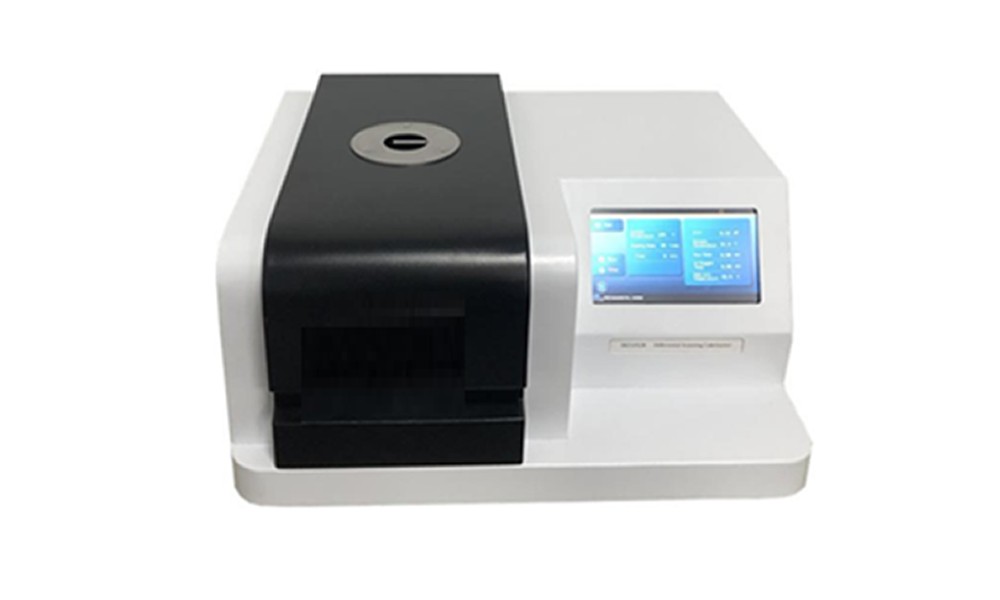

Differential Scanning Calorimeter
- Product Code: Differential Scanning Calorimeter
- Availability: In Stock
Differential Scanning Calorimeter
DSC Differential Scanning Calorimeter
DSC is designed to determine the inner heat transition relating to temperature and heat flow. It is widely used in the field of polymer development, performance testing, and quality control.
DSC research and development includes the following fields:
- Glass transition temperature (Tg)
- Melting point
- Cold crystallization
- Crystallization
- Phase transition
- Oxidation induction time (OIT)
- Specific heat capacity (Sapphire Wafer - optional)
Standards
ISO/TR10837:1991, ASTM D3895-1998, ASTM E 967, ASTM E 968, ASTM E 793, ASTM D 3895, ASTM D 3417, ASTM D 3418, ISO 11357-6
Main Features
- The industrial-grade 7-inch touch screen displays rich information.
- Brand-new metal furnace body structure, with better baseline and higher accuracy. The heating adopts indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is better than traditional heating mode.
- USB communication interface, strong versatility, reliable and uninterrupted communication, supports self-recovery connection function.
- Automatically switches the two-channel atmosphere flow, fast switching speed and short stabilization time. At the same time, a protective gas input is added.
- The software is simple and easy to operate.
Technical Parameters
| Parameter | Specification |
|---|---|
| Temperature range | RT ~ 550 ℃ |
| Heating rate | 0.1 ～ 100 ℃/min |
| Temperature resolution | 0.001 ℃ |
| Temperature fluctuations | ±0.001 ℃ |
| Temperature repeatability | ±0.1 ℃ |
| Constant temperature time | Program setting ≤24h |
| DSC range | 0 ~ ±600 mW |
| DSC noise | 0.01 μW |
| DSC resolution | 0.01 μW |
| DSC accuracy | 0.01 mW |
| Atmosphere control gas | Nitrogen, Oxygen (automatic switching) |
| Gas flow rate | 0 - 300 mL/min |
| Gas pressure | 0.2 MPa |
| Control Mode | Rising temperature, constant temperature (full automatic) |
| Curve scanning | Rising scan |
| Gas flow control | Built-in digital flow meter & software control |
| Display | 24-bit 7-inch LCD touch screen |
| Data interface | Standard USB connector |
| Parameter standard | With standard material, calibration function available |
| Software | Operating software |
| Thermocouples | 3 sets: 1) Test sample temperature 2) Test furnace temperature 3) Internal ambient temperature |
| Cooling device | Air cool |
| Power | AC220V / 50Hz |
Packing List
- Host instrument - 1 PC
- CD - 1 PC
- Data Line - 1 PC
- Power Line - 1 PC
- Aluminum crucibles - 100 PCS
- Ceramic crucibles - 100 PCS
- Pure tin grains - 1 bag
- Fuse 4A - 5 PCS
