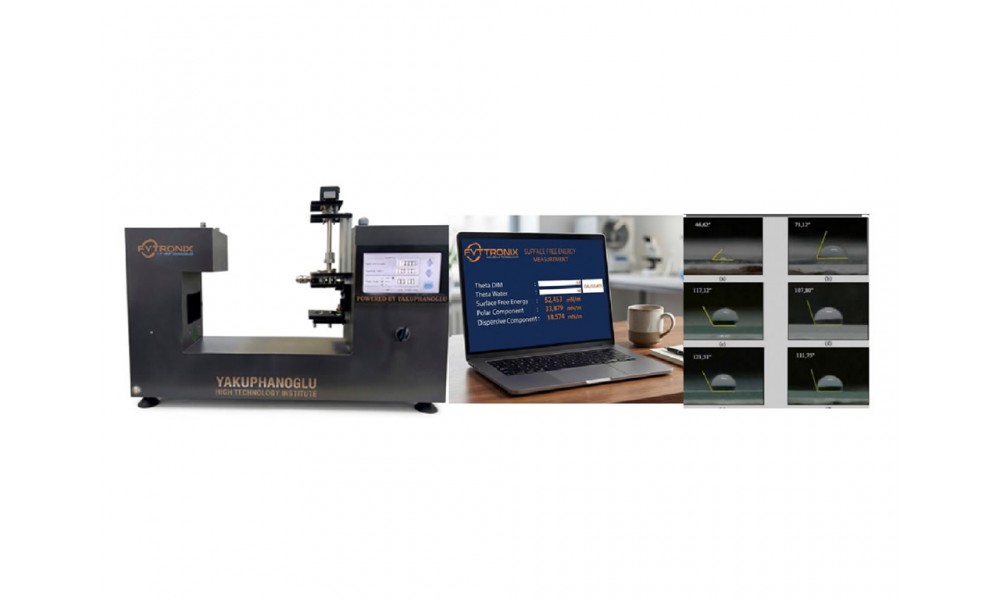

Optical Contact Angle Surface Energy Analyzer
- Product Code: CONTACT-ANGLE-TESTER-9600
- Availability: In Stock
CONTACT ANGLE TESTER 9600
High-Precision
Surface Wetting, Energy, and Interfacial Analysis System
Product Overview
The FYTRONIX Contact Angle & Surface Tensiometry Analyzer
is an advanced optical testing platform engineered to evaluate surface wetting,
contact angles, surface free energy, and liquid surface tension with extreme
scientific accuracy.
By utilizing
precise optical imaging, high-magnification optics, and robust fitting models,
the system delivers critical insights into solid-liquid interactions. Whether
evaluating superhydrophobic coatings, measuring complete wetting dynamics, or
performing pendant drop optical tensiometry via needle-suspended droplets, the
FYTRONIX analyzer provides reliable and reproducible results for advanced
material research and quality control.
Key Technical Capabilities
- Precise Contact
Angle Measurement: Rapid and precise
determination of surface wetting behaviors (hydrophobicity,
hydrophilicity, and complete spreading).
- Surface Free
Energy (SFE) Analysis: Automated calculation of
solid surface energy components using multi-liquid contact angle
evaluations.
- Surface
Roughness Assessment: Interfacial roughness
influence modeling for enhanced wetting interpretation.
- Advanced Fitting
Algorithms: Integrated 3-Point and 4-Point
geometric analysis methods for high-accuracy contact angle determination
across symmetric and asymmetric droplets.
Hardware
& Software Architecture
- High-Resolution
Optical Imaging System: Features
a specialized high-resolution camera paired with up to 130x optical magnification for crisp droplet
profile capture.
- Precision
Mechanical Optics Stand:
Heavy-duty, vibration-stable optical bench providing micro-positioning and
exact alignment between lighting, droplet, and optics.
- Fluid Delivery
System: Includes precision syringe,
micro-nozzles, and chemical-resistant connectors for precise droplet
volume control.
- Analytical
Software Suite: Purpose-built software for
automated edge detection, contact angle fitting (3-point/4-point), surface
free energy evaluation, and surface tension calculations.
Technical
Specifications
|
Parameter |
Specification / Feature |
|
Optical System |
High-resolution
camera with up to 130x magnification |
|
Analysis Methods |
3-Point and 4-Point Contact Angle Determination
Methods |
|
Measurement Modes |
Contact Angle,
Surface Free Energy (SFE), Surface Roughness Analysis |
|
Droplet Mechanics |
Sessile drop
method, Pendant drop method |
|
Dosing Hardware |
High-precision
syringe, custom micro-nozzle tips, fluidic connectors |
|
Mounting |
Adjustable optical
stand with precision positioning controls |
|
Software
Capabilities |
Automated drop
profile extraction, real-time angle calculation, multi-liquid SFE solver,
data reporting |
Complete
System Package Includes
- FYTRONIX Main
Contact Angle Analyzer Unit
- High-Resolution
Camera & 130x Optical System
- Precision Optics
& Alignment Stand
- Fluid Dosing Kit (Syringe, precision nozzles, and fluidic connectors)
FYTRONIX Contact Angle & Surface Energy Analysis Software
