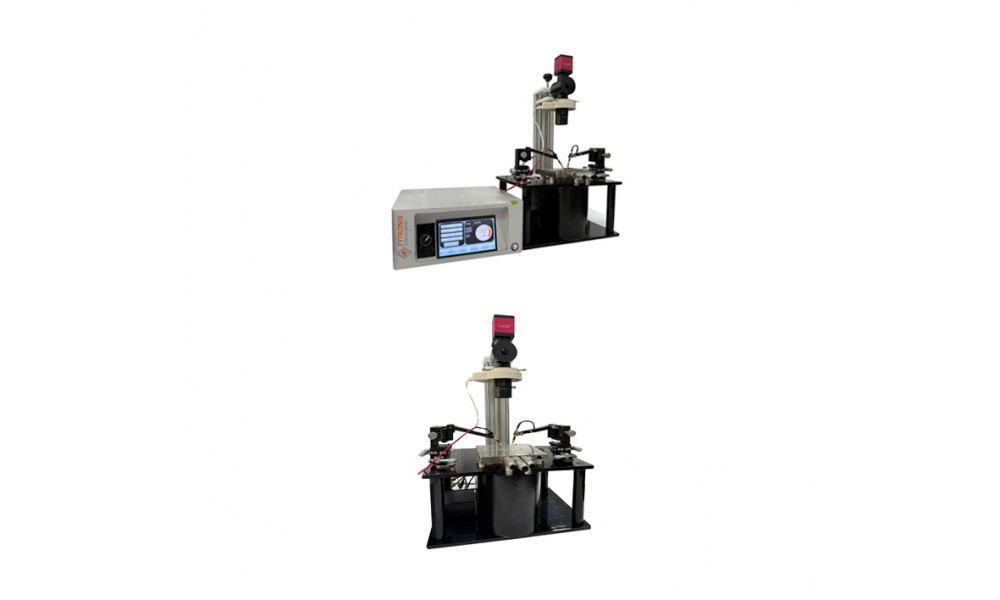

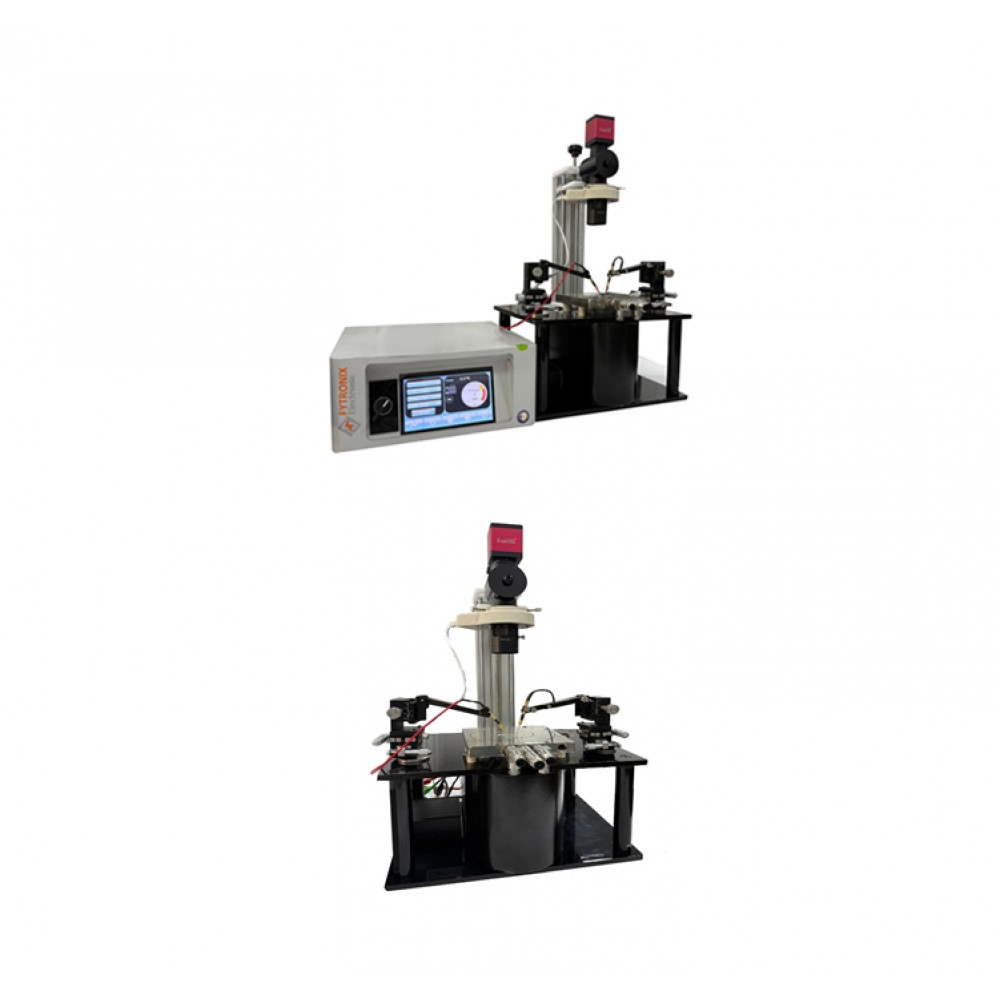

TEMPERATURE DEPENDENT PROBE STATION TDPS-9500

PROBE STATION can be used for current-voltage characteristics of electronic devices such as solar cell, photodiode, sensor and thin film transıstors. Probe station is designed according to below technical properties.

Technical Datasheet

XYZ manipulators ( 2 or 3 )

Vacuum chuck

Temperature chuck

Temperature controller

Temperature range: RT- 400 oC

Microscope for thin film transistor applications

High resolution camera: 5 MPA

Magnification: 130X

Monitor

Probe pin: Spring pin
