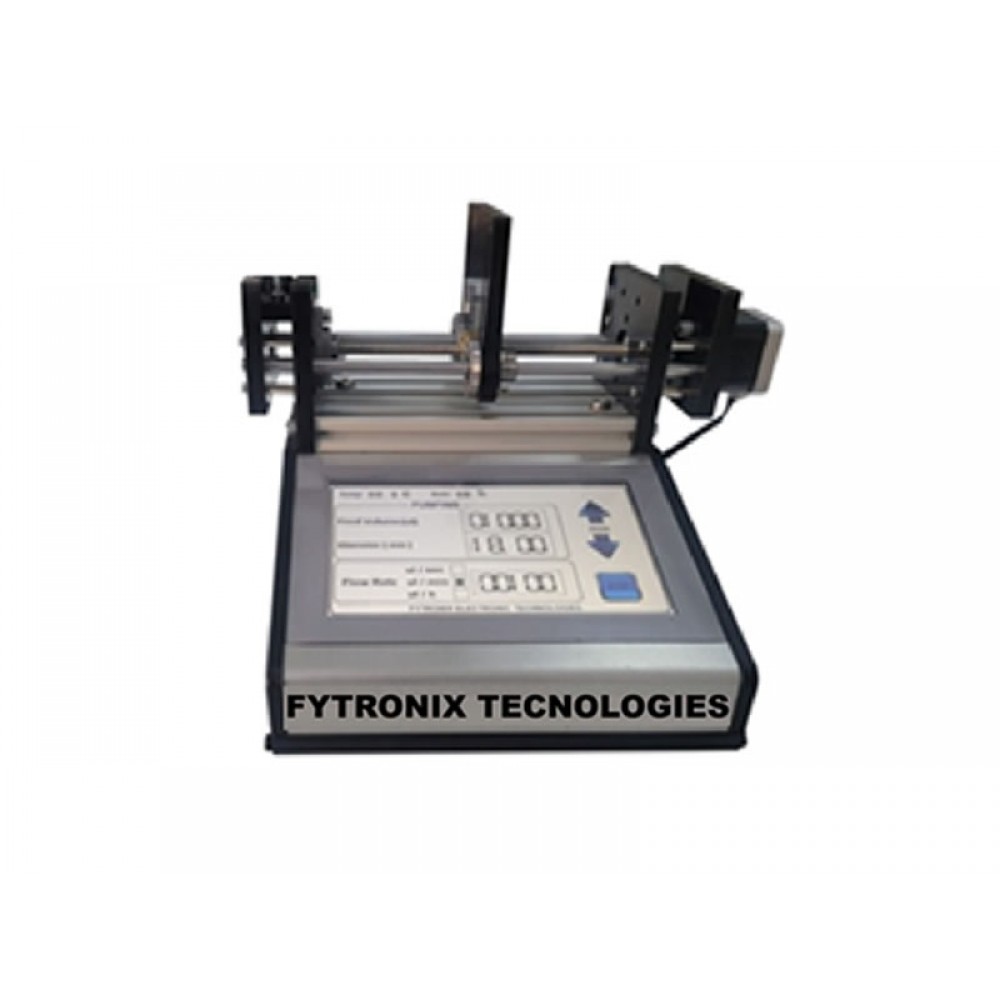

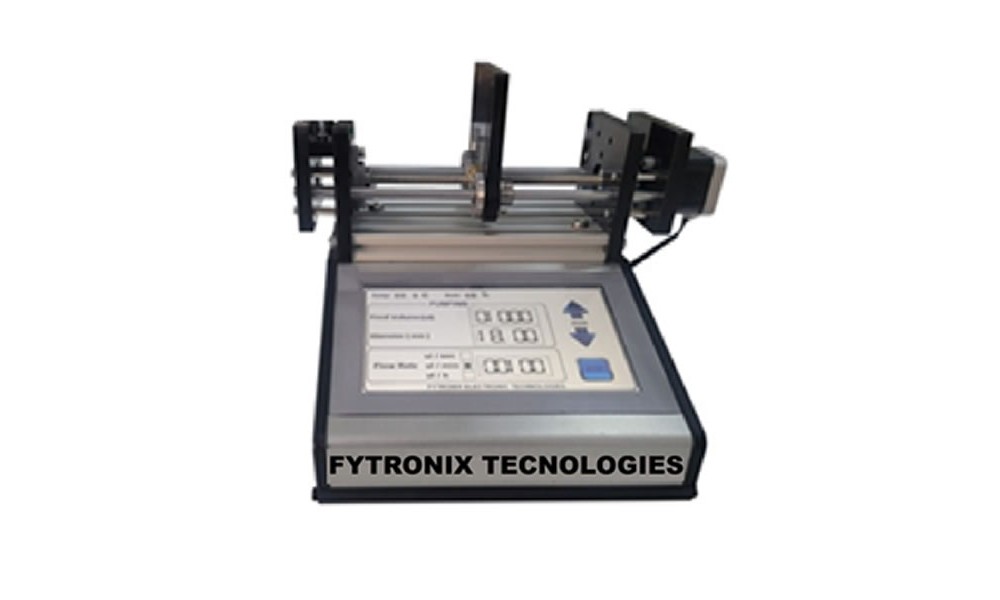

SYRINGE PUMP 8000

Technical Specifications

4” or 7” touchscreen

Microcontroller software

High-precision pumping capability

Flow rate adjustment even during the process

Compatible with glass, plastic, and steel needles (syringes)

Syringe barrel: 1

Minimum syringe volume: Hamilton 0.5 μL (ID: 0.103 mm)

Maximum syringe volume: Monoject 140 mL (ID: 38 mm)

Minimum flow rate: 17.89 pL/min (Hamilton 0.5 μL)

Maximum flow rate: 121.51 mL/min (140 ml Monoject) Syringe)

Motor type: Stepper Motor (Microcontroller with Microstep Drive, 357 nm/μstep)

Linear force of at least 20 kg

Must have a computer connection (wired or wireless).

Compatible with 220 V mains power

Must have a 2-year warranty.

The device must be delivered with installation and connections completed, and on-site training is required.

Desktop type

Automatic infusion of liquids in plastic, glass, or metal syringes at the user-defined flow rate.

1 syringe channel feature

Stand-alone operation without a computer

Pumping speed options: µL/hour, ml/hour, µL/minute, ml/minute

Stepper motor feature

Each revolution of the motor is at least 400 steps.

Ability to use different brands and models of syringes (0.5 µL and 140 mL)

Ability to use syringes of different volumes

Maximum speed of at least 3.7742 cm/min,

Minimum speed of at least 0.004205 cm/h

Maximum power of the device is 35 lbs at minimum speed and 18 lbs at maximum speed.

The device's maximum pumping speed is at least 1257 mL/h with a 60 mL syringe, and its minimum pumping speed is at most 0.73 µL/h with a 1 mL syringe.

The total volume of liquid dispensed by the device can be monitored in real time on the display.

The device has a 220-240 V/50-60 Hz mains voltage.

Bidder The company must hold a TSE Service Competence Certificate (TSE-HYB).

This certificate is mandatory for manufacturers and commercial companies offering certain services.

• Who is it mandatory for?

o Photo studios, bakeries, restaurants

o Automobile and appliance repair shops, electronics and computer repair shops

o LPG-CNG refueling and conversion stations

o Organizations that provide services such as cleaning, security, catering, and disinfection.

The product being considered for purchase does not require a TSE Service Competence Certificate.

The product is free of charge for the first 2 years against manufacturing and workmanship defects.

Spare parts and service are available for a fee for 8 years after the warranty period.
