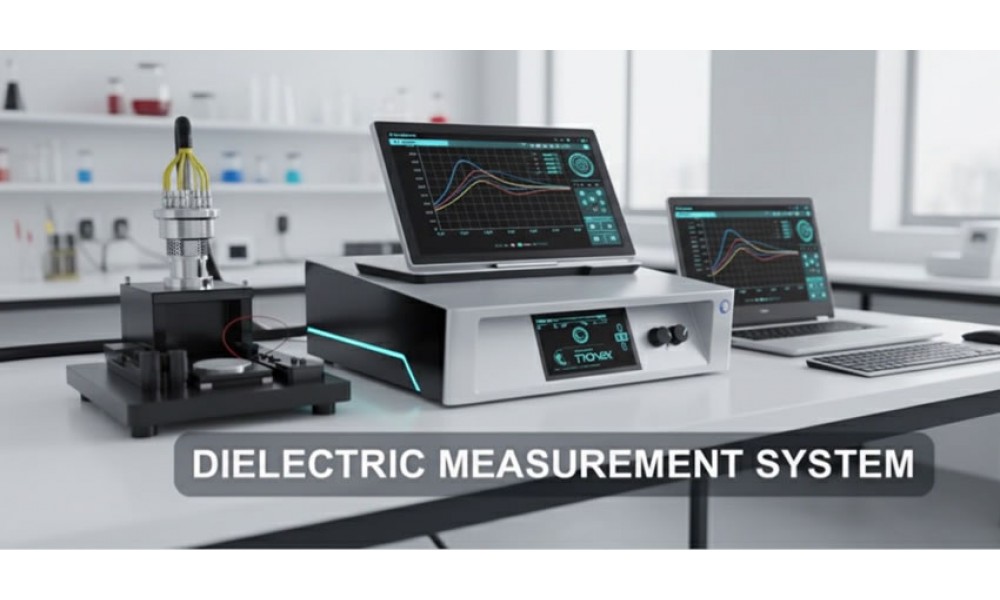

DIELECTRIC MESUREMENT SYSTEM
- Product Code: DIELECTRIC-MESUREMENT-SYSTEM
- Availability: In Stock
DIELECTRIC MESUREMENT SYSTEM
Overview
The Dielectric Analyzer is a cutting-edge platform designed for
precise and comprehensive dielectric and impedance characterization of advanced
materials. The system integrates high-precision frequency-dependent
measurements with optional temperature-controlled analysis,
providing researchers and engineers with detailed insight into material
electrical properties.
With its ability to simultaneously measure multiple electrical parameters
and analyze their frequency and temperature dependence, this system is ideal
for nanomaterials, polymers, ceramics, and composite research.
Key Features
- Wide
Frequency Range: 120 mHz – 25 MHz
- Optional
Temperature Control: Room Temperature (RT) –
150°C (350 K)
- Closed
Sample Holder for safe and stable measurements
- Advanced
Software for automatic data acquisition, analysis, and visualization
- Simultaneous
Multi-Parameter Measurement of 14 impedance and
dielectric parameters
- AC
Conductivity & Dielectric Property Analysis from room
temperature to 150°C (or up to 350 K optionally)
Measured Parameters
The system can measure the following parameters simultaneously:
|
Parameter |
Symbol |
|
Impedance |
|
|
Admittance |
|
|
Phase Angle |
θ |
|
Parallel Resistance |
Rp |
|
Series Resistance |
Rs |
|
Conductance |
G |
|
Reactance |
X |
|
Susceptance |
B |
|
Parallel Capacitance |
Cp |
|
Series Capacitance |
Cs |
|
Parallel Inductance |
Lp |
|
Series Inductance |
Ls |
|
Dielectric Loss |
D (tan δ) |
|
AC Conductivity |
σac |
|
Real part of dielectric constant |
ε’ |
|
Imaginary part of dielectric constant |
ε’’ |
Note: Measurements can be performed as a function of frequency at
constant temperature, or as a function of temperature at constant
frequency.
Technical Highlights
- Simultaneous
measurement of all 14 parameters at constant temperature vs.
frequency
- Simultaneous
measurement at constant frequency vs. temperature
- Temperature
ranges:
- RT
- RT – 350
K (Optional)
- AC
conductivity and dielectric properties captured across wide temperature
and frequency ranges
Applications
- Dielectric
property analysis of polymers, ceramics, and composites
- AC
conductivity studies for energy storage and electronic applications
- Frequency-dependent
impedance measurements for sensor and device development
- Temperature-dependent
dielectric characterization for advanced material research
Why Choose Dielectric &
Impedance Analyzer?
- Comprehensive
Measurement: 14 key electrical parameters in one platform
- Flexible
Temperature Options: Room temperature to 350 K
- Advanced
Data Analysis: Software provides automated, real-time processing
- Reliable
and Reproducible: Closed sample holder
ensures stability and repeatability
- Research-Ready: Suitable
for academia, industrial R&D, and nanomaterials labs
