NANOFAB ANALYZER
A) General Functions
- Electrospinning
Device: Nanofiber production
- Nanomaterial
Production Device: Nanoparticle synthesis
- Contact
Angle Meter: Surface wettability measurement
- Dielectric
Characterization: Measurement of dielectric
parameters
- Ultrasonic
Sonicator: Nanoparticle dispersion
B) Module Details
1. Nanofiber Production Module
- High
voltage power supply: 0–30 kV
- Syringe
pump: 0.1–10 mL/h
- Nozzle /
needle: 18–27 gauge
- Collector: flat
plate or rotating drum
- Environmental
control: temperature (25–40°C), humidity (20–60% RH), HEPA filtration
- Technical
specifications will be provided during the procurement phase
2. Nanoparticle Production Module
- High-pressure
reactor with adjustable pressure
- pH and
temperature control
- Ultrasonic
dispersion probe
- Technical
specifications will be provided during the procurement phase
3. Contact Angle (Surface
Wettability) Module
- High-resolution
camera (≥60 fps)
- Sample
stage
- Micro-droplet
dispensing system (1–5 µL precision)
- Software: Contact
angle and surface free energy analysis

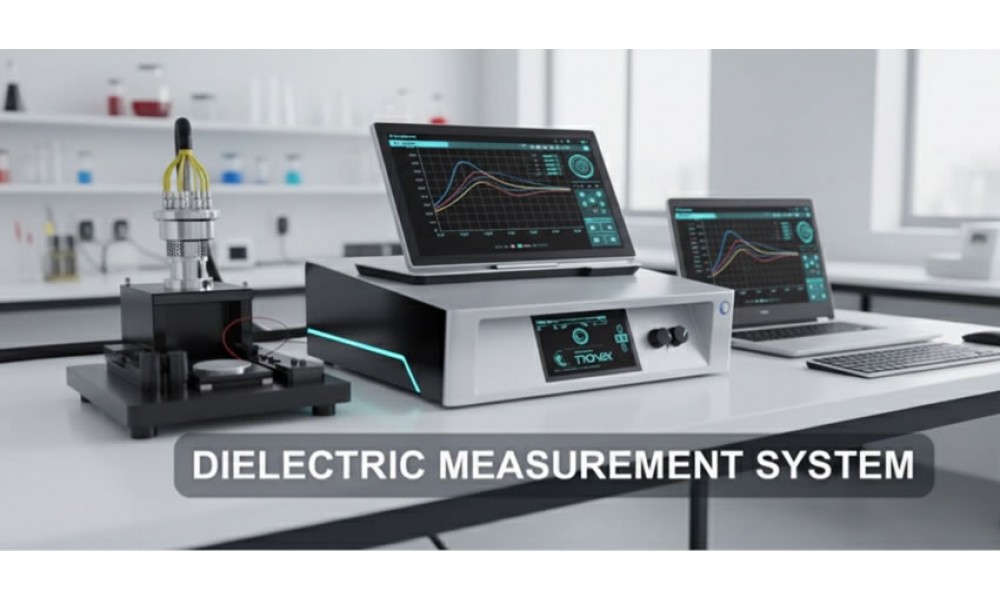

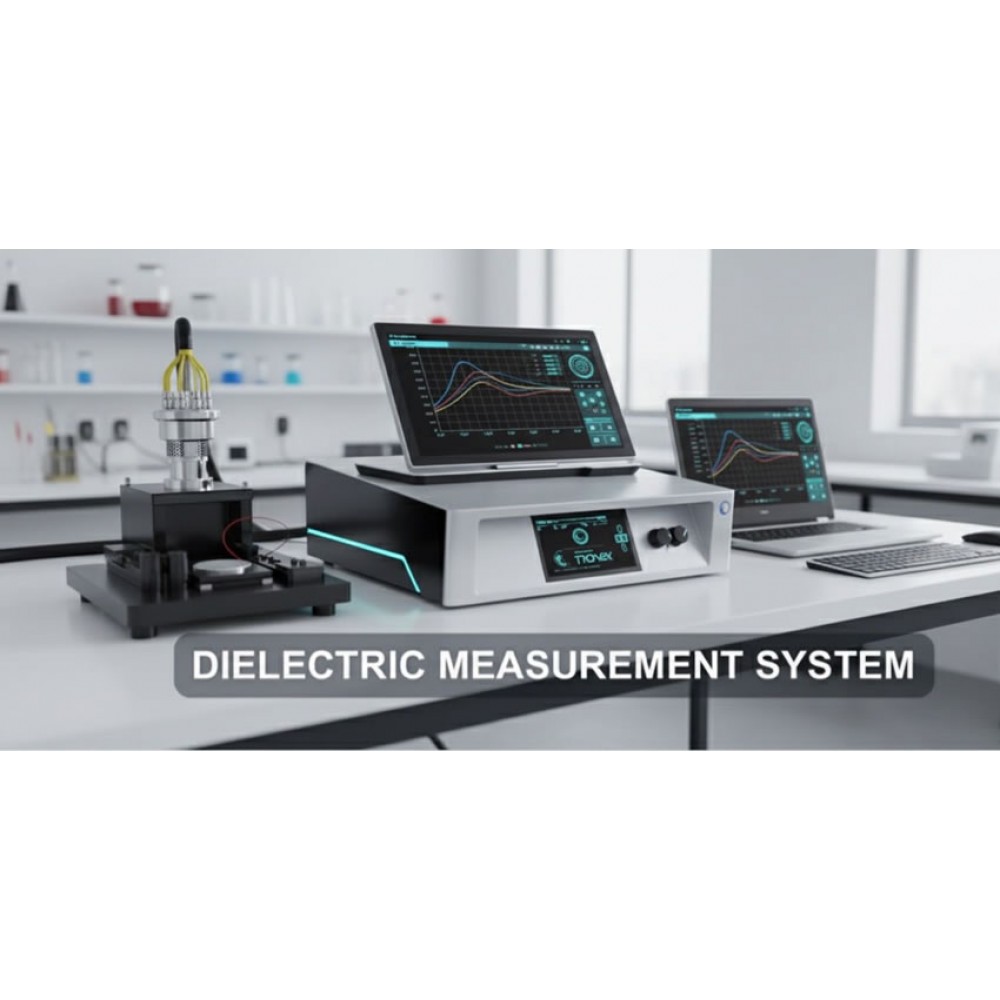

4. Dielectric Property
Measurement Module
- Impedance
analysis: 115 µHz – 25 MHz
- Parallel-plate
capacitive sample cell
- Temperature-controlled
sample chamber
- Measurements:
dielectric constant, loss factor, AC conductivity, impedance spectrum, and
all related parameters
C) Integration and Control
- Single
software interface
- Automatic
data flow between modules
- Safety
features: high-voltage interlock, chemical sensor, overcurrent/overheat
protection
- Sample
workflow: fiber production → nanoparticle incorporation → surface analysis →
dielectric measurement
