LED Solar Simulator 15
- Product Code: LED-Solar-Simulator-15
- Availability: In Stock

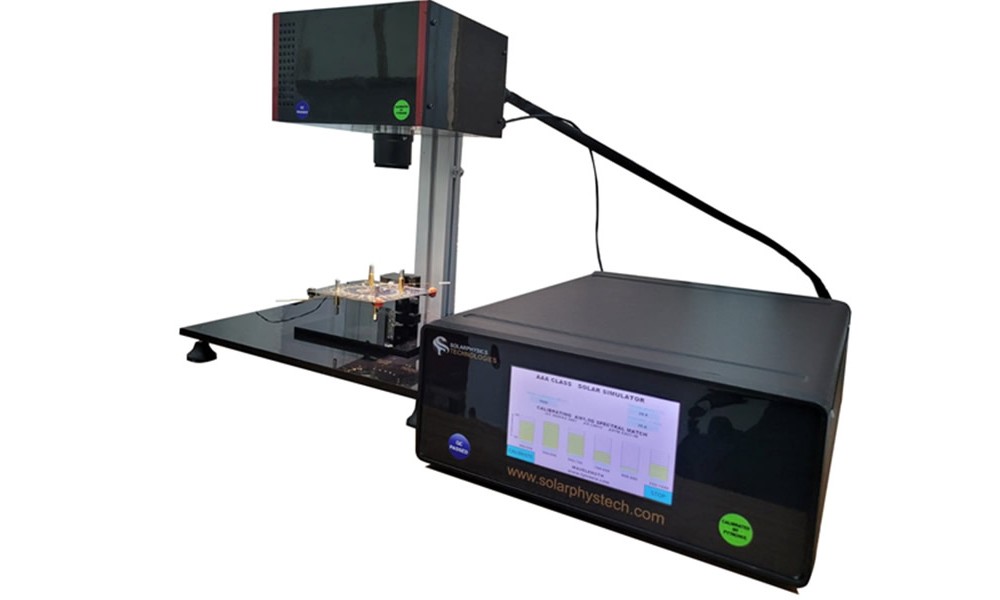

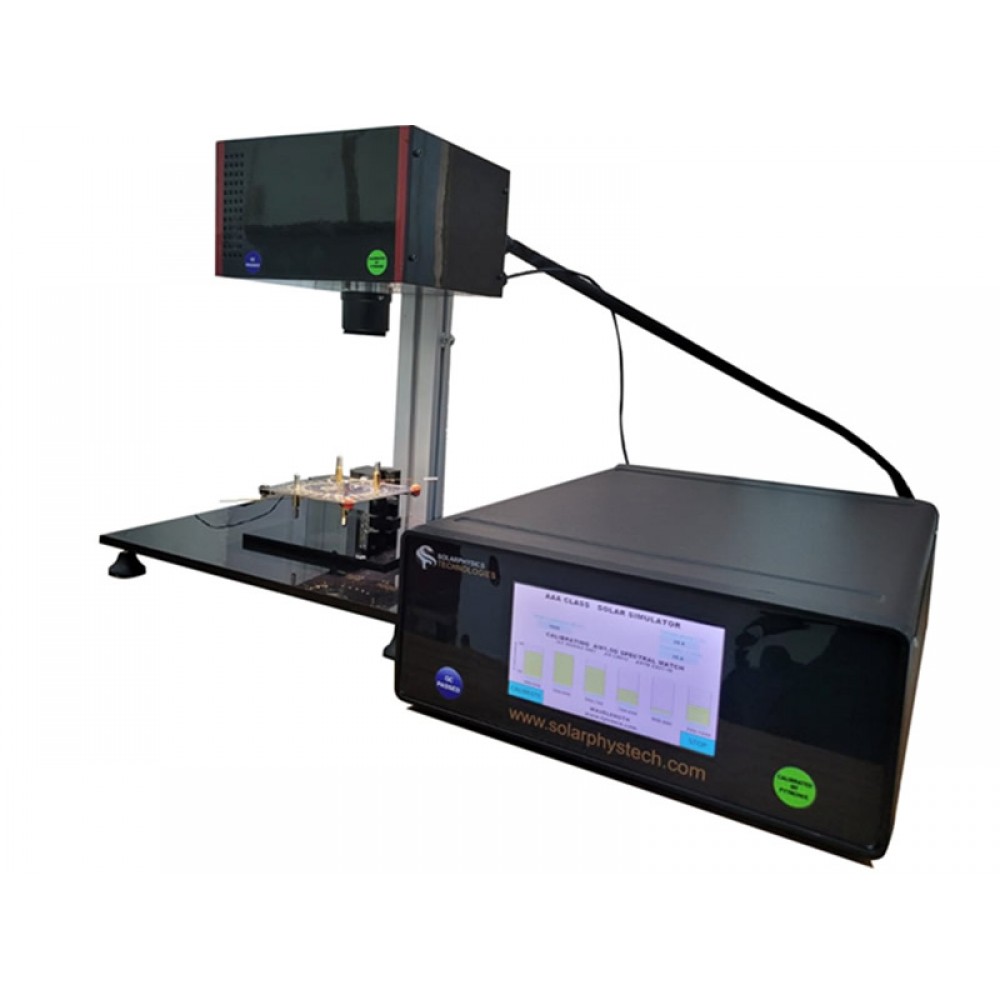

LED Solar Simulator 15
Overview
The LED Solar Simulator is a high-precision photovoltaic testing platform designed for I–V (current-voltage) and P–V (power-voltage) characterization of solar cells. The system is manufactured in compliance with IEC 60904-9 (2007) and JIS C 891 standards, and is configurable according to requested specifications.
Specifications
Feature | Specification |
Class | AAA or ABA (IEC Standard) |
Illumination Area | 40 × 40 mm |
Output Power | 100 mW/cm² |
Output Adjustment | 0.1 – 1.1 SUN (via distance control) |
Data Collection Time (I–V) | 1 ms |
Measurement Delay Time | 1 – 100 ms |
Measurement Time | 1 s |
Run Time | 10 ms |
Wavelength Range | 400 – 1100 nm |
Temporal Stability | Class A (IEC 60904-9 2007, JIS 8904-9 2017) |
Uniformity | Class A (IEC 60904-9, JIS 8904-9 2017) |
Spectral Matching | Class A |
USB Control | USB 2.0 |
Humidity | <85% |
Compliance | CE, RoHS |
Power Supply | 220–240 V, 47–63 Hz, 2.8 |
Optical Breadboard | 1 × 2 ft |
Source Meter
Feature | Specification |
Voltage Range | ±7 V |
Current Range | 1 nA – 30 mA |
2-Wire Universal | Yes |
Automatic Range | Yes |
Software
The Solar Simulator Software provides fully automated measurement and analysis of photovoltaic parameters of solar cells, including:
· Open Circuit Voltage (Voc)
· Short Circuit Current (Isc)
· Fill Factor (FF)
· Voltage at Maximum Power (Vmax)
· Current at Maximum Power (Imax)
· Maximum Power Output (Pmax)
· Shunt Resistance (Rsh)
· Series Resistance (Rs)
· Characteristic Resistance of the Solar Cell (Rch)
· Photoresponse (RR)
· Solar Cell Efficiency (η)
The software ensures computer-controlled, precise, and repeatable measurements, making it suitable for R&D, laboratory testing, and quality control.
Reference Solar Cell
Overview
The Reference Solar Cell is a precision-calibrated photovoltaic cell designed for calibration of solar simulators and performance assessment of photovoltaic devices. It provides accurate measurement of irradiance and ensures reliable I–V characterization of solar cells under standardized conditions.
Specifications
Feature | Specification |
Photovoltaic Cell | 10 × 10 mm Monocrystalline Silicon |
Enclosure | 100 × 100 mm |
Filter | KG3 Optical Filter |
Calibration | 1000 W/m² (1 Sun), AM1.5G, 25 °C |
Included Accessories | Certified connecting cables, Calibration certificate |
Key Features
· Precision irradiance calibration for solar simulators
· Compatible with all types of photovoltaic testing systems
· Ensures accurate and repeatable I–V characterization
· Certified calibration with included documentation
