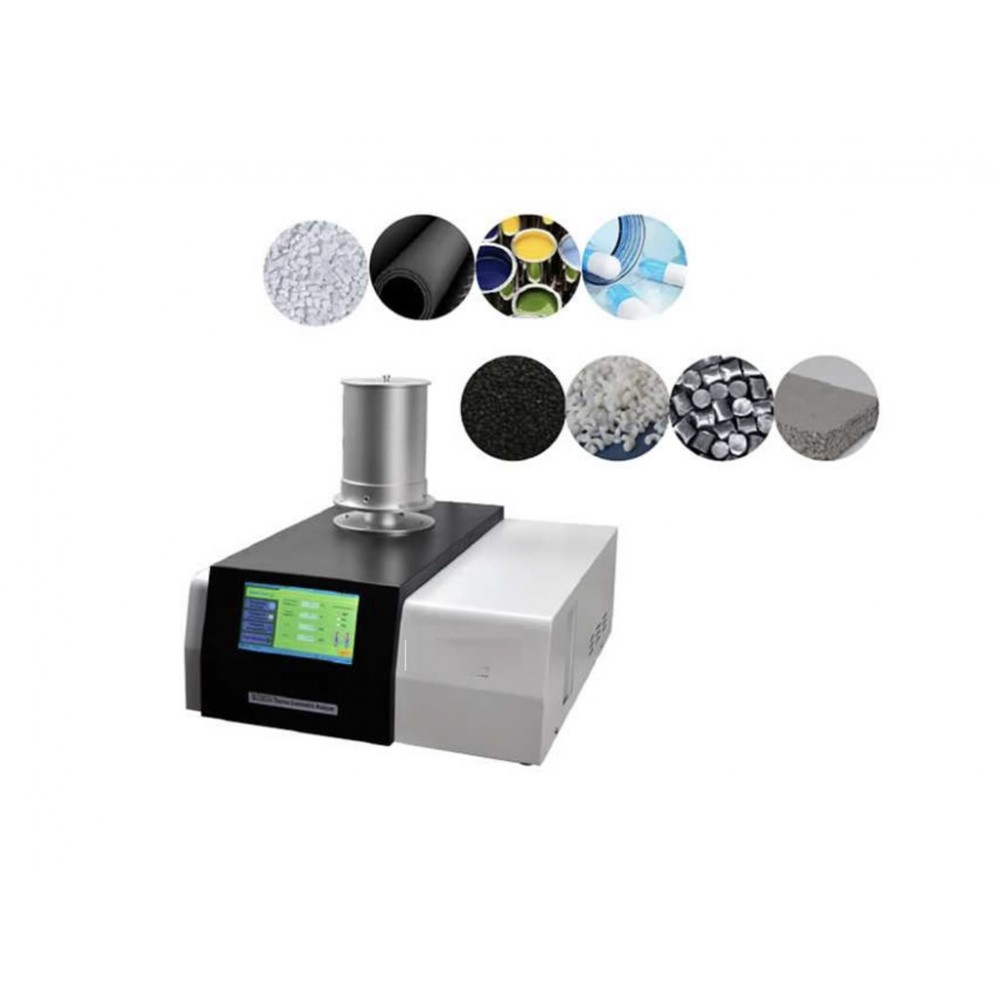

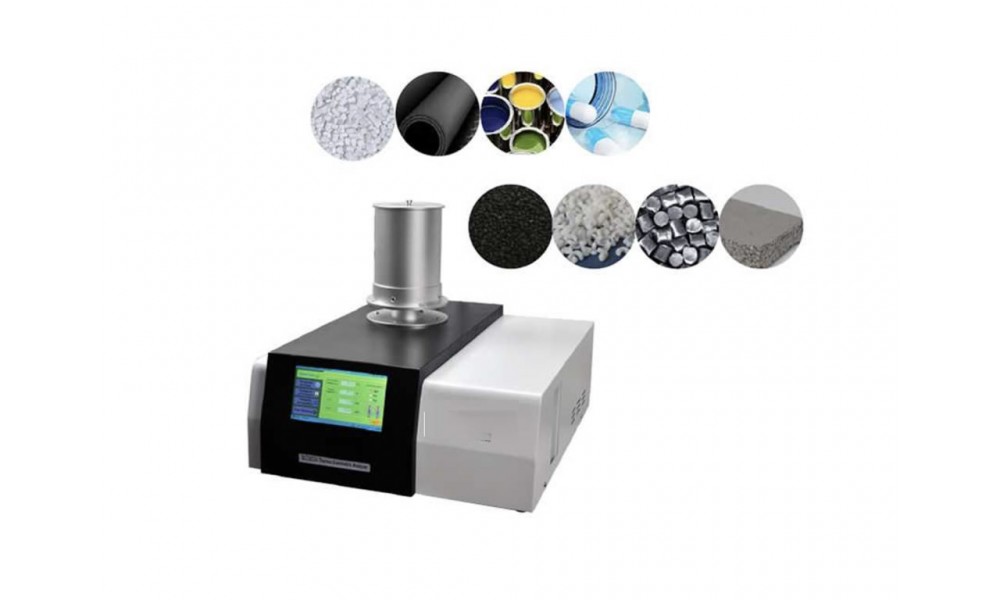

TGA55 Thermo gravimetric analyzer

Structural advantages:
1. The furnace body is heated by double-row winding of precious metalnickel-cadmium alloy wire, which reduces interference and is more resistant tohigh temperatures.
2. The tray sensor is made of precious metal alloy wire, which has theadvantages of high temperature resistance, oxidation resistance and corrosionresistance.
3. The power supply and circulating heat dissipation part are separated fromthe main machine to reduce the influence of heat and vibration on themicro-thermal balance.
4. Adopt top-opening structure, easy to operate. It is difficult to move thefurnace body up to place the sample, and it is easy to damage the sample rod.
5. The host uses the heat insulation of the heating furnace body to the chassisand micro-thermal balance.
6. The furnace body can be replaced according to customer requirements.

Controller and software advantages:
1. Using imported ARM processor, sampling speed, processing speed is faster.
2. Four-channel sampling AD collects TG signal and temperature T signal.
3. Heating control, using PID algorithm, precise control. Multi-stage heatingand constant temperature
4. The USB two-way communication is adopted between the software and theinstrument to fully realize remote operation. The parameter setting of theinstrument and the operation and stop of the instrument can be carried outthrough the computer software.
5. 7-inch full-color 24bit touch screen, better man-machine interface. TGcalibration can be achieved on the touch screen

Technicalparameters:
