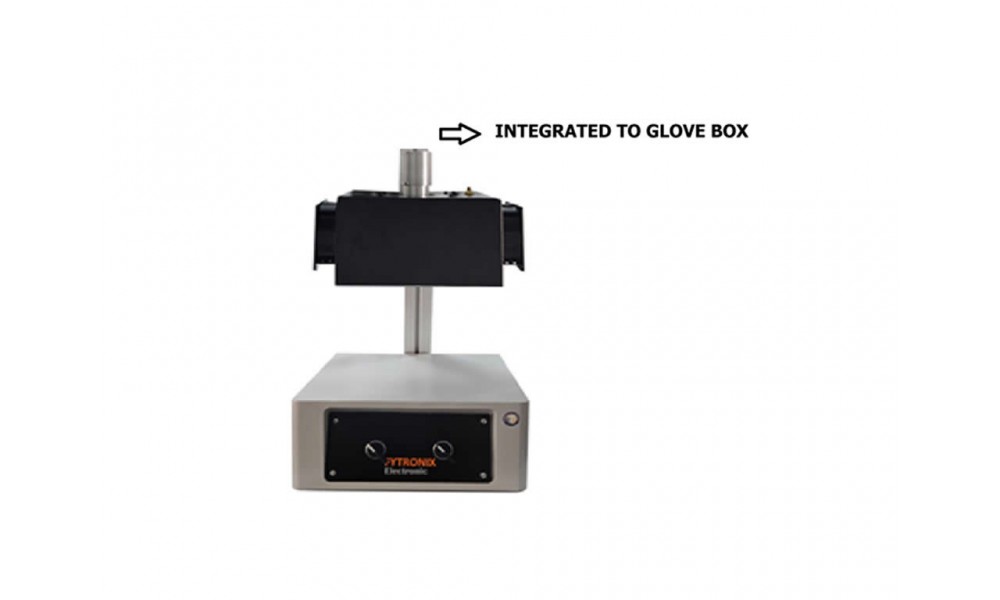

INTEGRATED GLOVE BOX AAA CLASS SOLAR SIMULATOR

TECHNICAL PRODUCT DATASHEET:

CLASS AAA SOLAR SIMULATOR

This professional-grade Solar Simulator is engineered for high-precision photovoltaic research, material characterization, and biological testing, fully complying with ASTM E927-19 and IEC 60904-9 Ed.3international standards.

Product Overview

The system utilizes AAA class light source  technology combined with an AM1.5Gspectral filter to replicate the natural solar spectrum with peak accuracy. Its compact design and integrated safety modifications make it ideal for glovebox integration and high-end laboratory environments.

Technical Specifications

1. Optical Performance & Classification

Parameter Value / Class Standard Compliance

Solar Simulator Class AAA IEC 60904-9 Ed.3 / ASTM E927-19

Spectral Match Class A (0.875–1.125) With AM1.5G Filter

Spatial Non-Uniformity < 2% (Class A) Over 50 × 50 mm Area

Temporal Instability < 2% (Class A) Short-term and Long-term

2. Illumination & Light Source

• Light sources :

•

i. 300W Xenon Short Arc (Ozone-Free) (Life time: 1000 hour)

ii. Fytronix AAA Class light source ( Life time: 12000 hour

•

• Lamp Lifespan: 1000 Hours (Average)

• Illumination Area: 50 × 50 mm

• Working Distance: up to 400 mm or more

• Irradiance at Target:  1 Sun (1000 W/m² at AM1.5G standard)

3. Control & Mechanical Design

• Shutter Operation: Manual

• Variable Attenuator: Manual (For precise light intensity control)

• Dimensions (L×W×H): 535 × 183 × 188 mm

• Weight: 8.5 kg (Main Unit) + 8 kg (Mounting Stand)

• Power Requirements: 110–240V AC, 50/60 Hz (Max 450 W)

Key Features & Advantages

• Research-Grade Accuracy: Class A temporal stability ensures data consistency during long-term degradation tests and IV characterization.

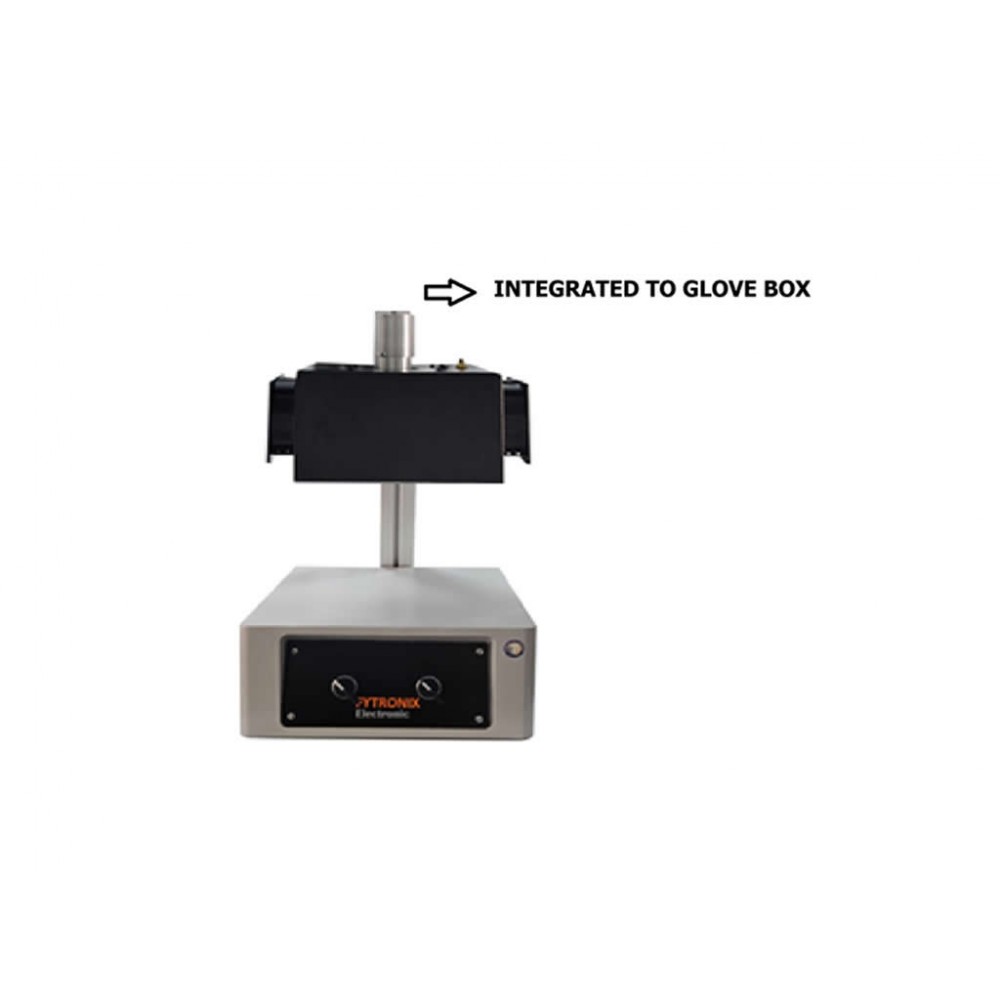

• Glovebox Optimized: Specifically designed for integration under a glovebox. A custom-fitted metal plate is installed around the simulator section to ensure airtight integrity and thermal protection.

• Versatile Intensity: The manual variable attenuator allows researchers to perform measurements across a range of intensities (from low light to 2 Sun).

• Safe Operation: Ozone-free lamps eliminate the need for specialized ventilation systems for toxic gas removal.

Safety & Installation

Note: The inclusion of the specialized metal plate around the simulator section is a critical safety feature for glovebox setups, preventing heat transfer to the enclosure and protecting internal components from light leakage.

Standard Package Includes: 300W Xenon Housing, Power Supply Unit, Mounting Stand, AM1.5G Filter, and Manual Shutter/Attenuator Assembly.

Certificate Compliance

Product: Solar Simulator Model: SOLAR TECH X-11 SN: 112 Applicable

Standards: ASTM E 72-10, EIC 60904-9, JIS C 8912

Spectral Fit

Certificate Compliance

07.03. 2025

Product: Solar Simulator Model: SOLAR TECH X-11  SN: 112 Applicable Standards: ASTM E 72-10, EIC 60904-9, JIS C 8912

Spectral Fit
