AAA Class Sunscreen Solar Simulator
AAA Class Solar Simulator – Sunscreen Applications
Overview

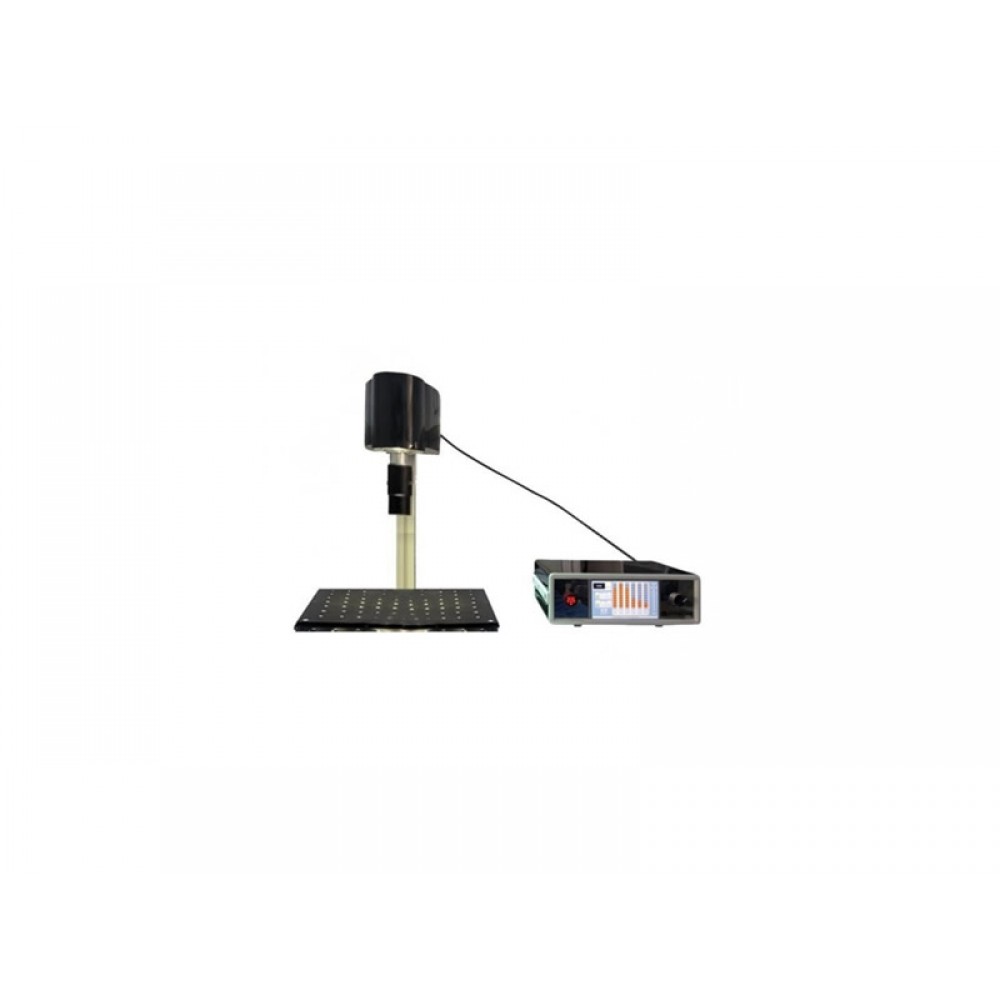

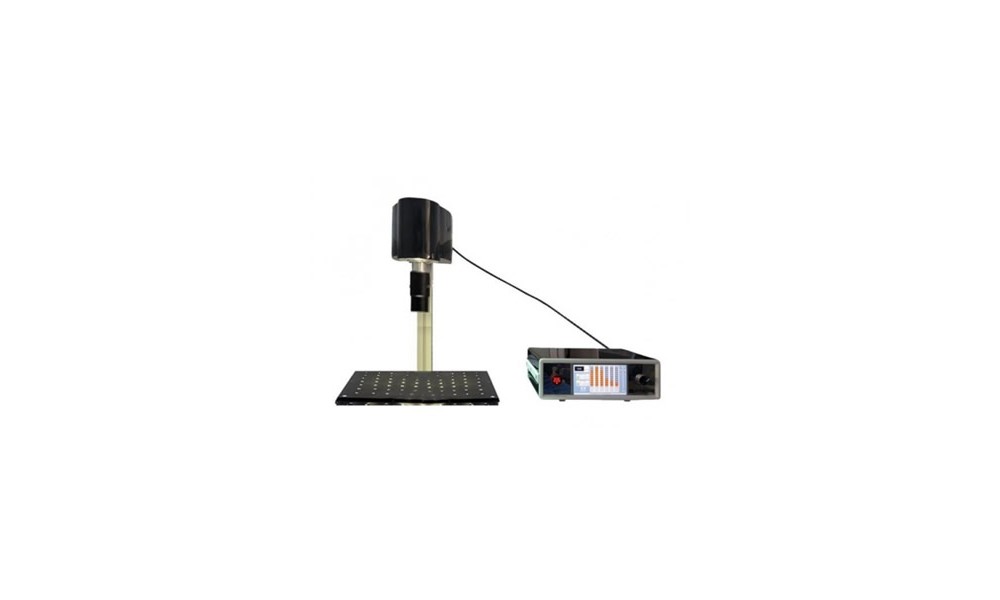

The AAA Class Solar Simulator is specifically designed for sunscreen testing and in vivo SPF determinations. It provides a high-precision ultraviolet (UV) spectrum for reliable measurement of skin protection factors and other UV-sensitive experiments.
The simulator uses a 150 W Xenon lamp with specialized filters to deliver the UVB (290–320 nm) and UVA (320–400 nm) spectral ranges, ensuring compliance with international SPF test standards.
Technical Specifications
Feature | Specification |
Class | AAA |
Application | Sunscreen / In Vivo SPF Determination |
Wavelength Range | 290 – 400 nm |
Spectral Match | AAA (±25%, JIS C 8912 or JIS C 8933 Class A) |
Temporal Stability | ≤1%/h (JIS C 8912 Class A) |
Light Source | 150 W Xenon Lamp |
Filter | AM1.5G, WG-320, UG-11 for UVA (320–400 nm) and UVB (290–320 nm) |
Effective Illumination Area | 30 × 30 mm or 40 mm |
Input Voltage | 100–120 V or 200–240 V (switch selectable) |
Warranty | 2 Years |
Applications
- In vivo SPF (Sun Protection Factor) testing
- Sunscreen efficacy evaluation
- UV-induced photobiology studies
- Dermatological research requiring controlled UVA/UVB exposure
Additional Information
- In vivo SPF determinations were performed according to the International Harmonized SPF Test Method.
- Studies included healthy volunteers (Fitzpatrick skin type I–III) with informed consent.
- The solar simulator provides reliable and reproducible UV spectral output for research and regulatory testing.
